Beschreibung

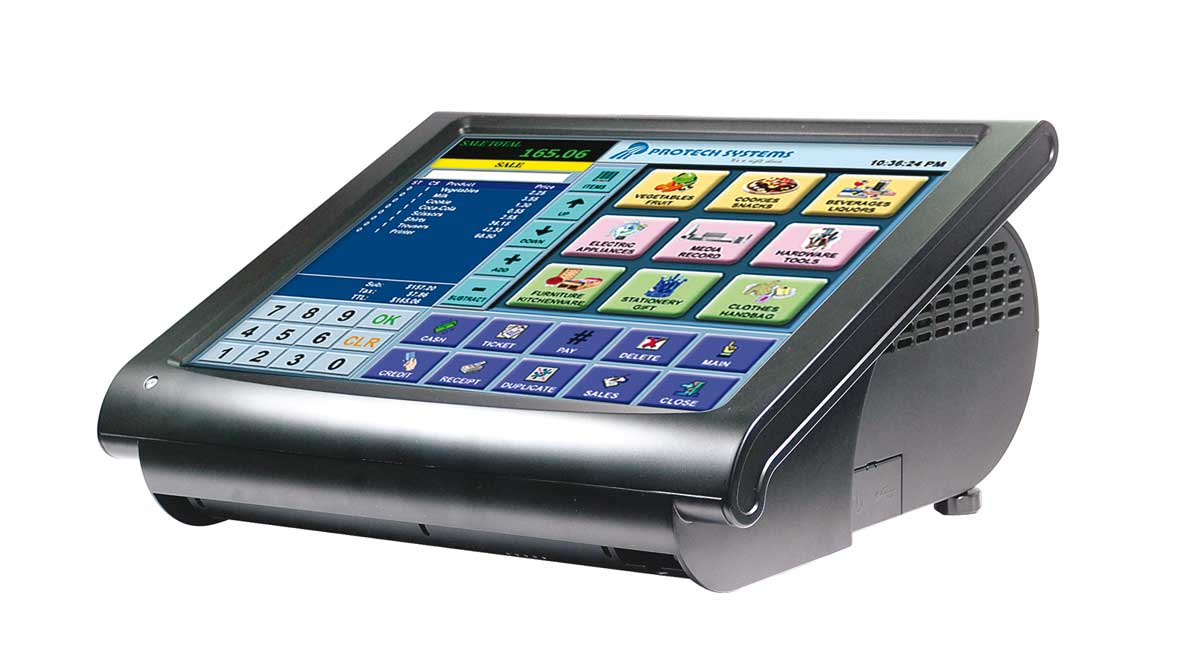

Kassensystem EZ PA 3522
• Intel® Celeron® J1900 CPU
• 15″ LCD Monitor mit berührungsempfindlichen Bildschirm
• flexibles Design für vielseitige Anwendungen
• inkl. 3″ Thermodrucker
• optional Magnetstreifenleser, i-Button, & Fingerprintleser
• kleine Stellfläche & optimiertes Design
System
CPU Support Intel® Celeron® J1900
Memory DDR3L SO-DIMM (1 slot, up to 8GB)
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 72~120Watt power adapter
Audio 2W speaker
System Weight with power adaptor approx. 6kg
Dimension 356 x 309 x 167mm
O.S. Support WIN8 /POSReady7
Storage SSD 32 GB
mSATA 1 x SSD
I/O Ports
USB 4 x USB on rear, 1 x USB on side bezel
Serial Port 3 + 1(option) x DB9 (+5V/ 12V selectable)
LAN 1 x RJ45
VGA 1 x DB15
Line Out 1 x phone jack
Cash Drawer 1 + 1(option, with Y cable) x RJ11 (+12V or +24V selectable)
DC-in 1 x 4pin DC Power Jack
LPT 1 x DB25(option)
Peripherie

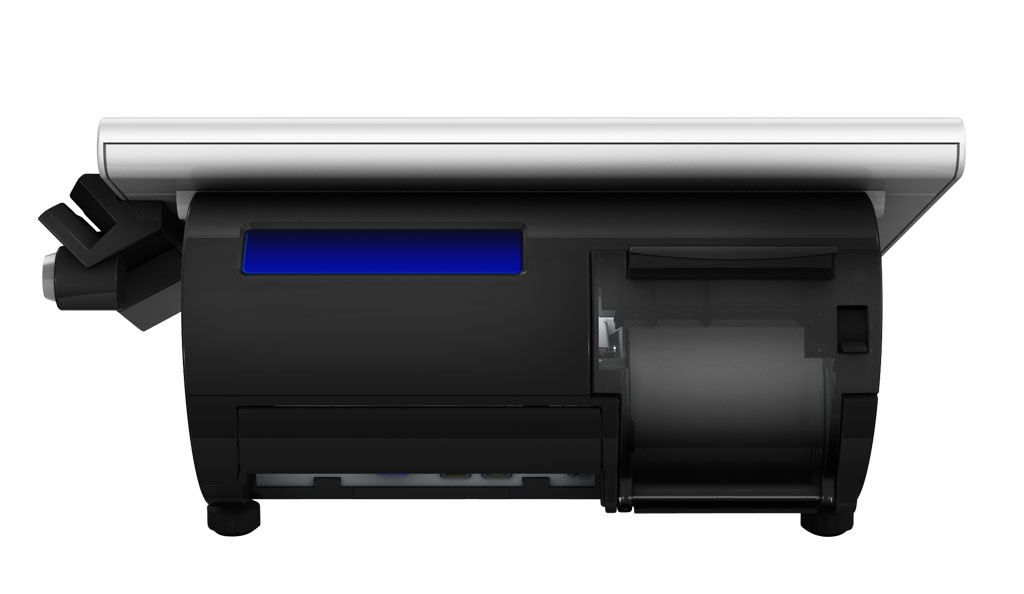

Customer Display VFD, 20 columns and 2 lines, each column is 5 x 7 dots
Printer 2″ or 3″ easy loading thermal printer with Auto cutter

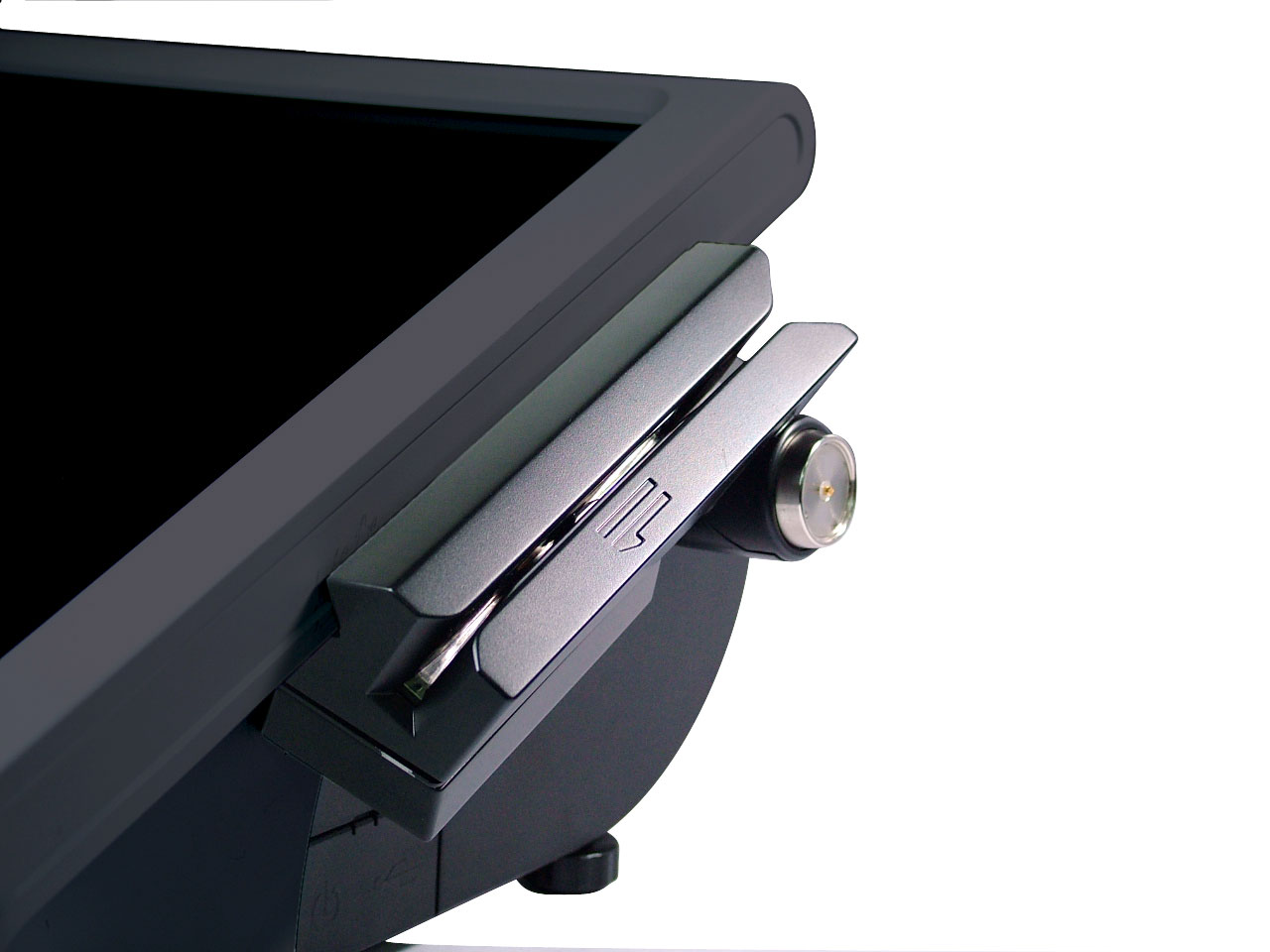

MSR & iButton ISO I,II,III; JIS I,II and support information key
Fingerprint 8-bit grayscale, reader
Monitor
LCD 15″ TFT LCD
Resolution 1024 x 768
Brightness 250 cd/m²
Touch Screen 5-wire Analog resistive
Umgebung
EMC & Safety CE / FCC
Operating Temp. 0 ~ 35° C
Storage Temp. -5 ~ 60° C
Kassensystem EZ PA 3522
